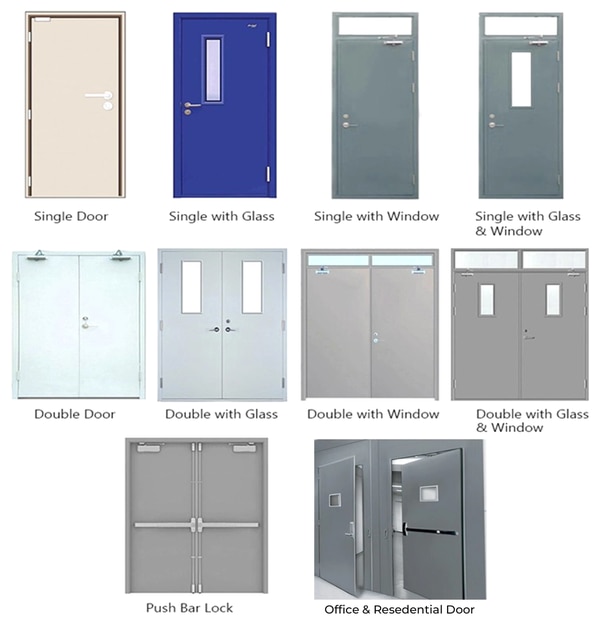

DOORS ELEVATION

ADDITIONAL DOOR CATEGORIES

DOOR CONSRUCTION DETAIL Door Type: Wooden Fire Retardant Door Criteria: Stability & Integrity with Infill Insulation Material Rating: 60-120mins Shutter Thickness: 50-55mm Frame Profile Design: 120/140 x 70mm Testing Standards: IS 3614: PART 2 ,BS 476 PART 20 &22 Test Laboratory: Approved /Govt. Lab DESCRIPTION 1. Frame - Door Frame made out of Hardwood Mirandi/Teakwood as per req. 2. Shutter - Internal frame made of Hardwood Timber 3. Shutter Infill - Wool Insulation with Calcium silicate board 4. Vision Panel - Fire rated glass 60-120 minutes rating 5. Intumescent fire/smoke seal 10x4 - 2 nos on all three sides of frame 6. Intumescent fire/smoke seal 20x4 - 1 nos on all sides of shutter except Bottom 7. 3mm to 6mm Commercial ply on both sides of shutter 8. Doors along with the Hardware's of approved or selected Brands RECOMMENDED FINISH Door Frame 1. FR Primer with paint finish Shutter 2. Both side Laminate/Veneer or FR Primer with paint finish 2. Both side Laminate/Veneer or FR Primer with paint finish

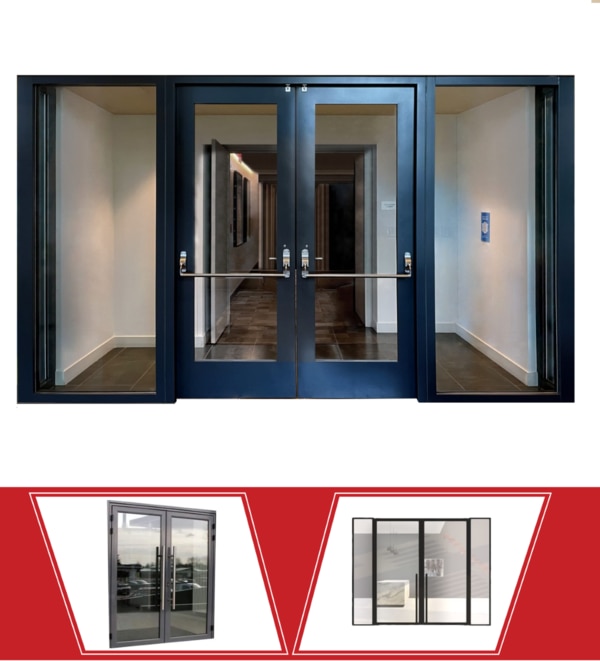

DOOR CONSRUCTION DETAIL Door Type: Fully Glazed Steel Door with Fixed Partition Criteria: Stability & Integrity with Infill Insulation Material Shutter Thickness : 60mm Steel Frame Profile Design: 60x60mm Clear Glass: 6mm-11mm Thick Toughened Glass DESCRIPTION 1. Frame - 1.6mm Thick Galvanised steel sheet 2. Shutter - 1.6mm Thick Galvanised steel sheet 3. Vision Panel - As per requirement (Upto Max.) 4. Shutter and Frame Infill - Insulation Material 5. Machine made interlocking skin sheets with interlock edges 6. Doors along with the Hardware's of approved or selected Brands RECOMMENDED FINISH Door Frame & Shutter 1.Powder Coating in desired RAL Shade Code

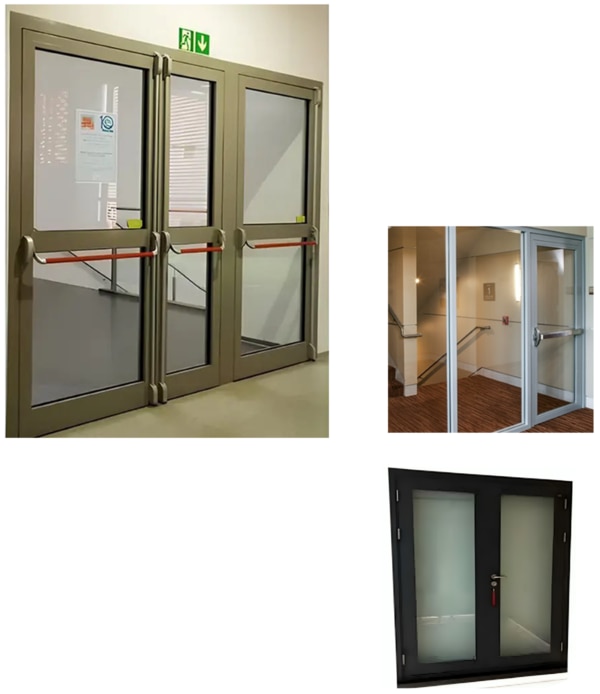

DOOR CONSRUCTION DETAIL Door Type: Fully Glazed Steel Door Criteria: Stability, Integrity with Infill Insulation/Honeycomb Shutter Thickness: 46mm-50mm Steel Frame Profile Design:143x57mm (Double Rebate) Clear Glass: 6mm-11mm Thick Toughened Glass DESCRIPTION 1. Frame - 1.6mm Thick Galvanised steel sheet 2. Shutter - 1.2mm/1.6mm Thick Galvanised steel sheet 3. Vision Panel - As per requirement(Upto Max.) 4. Shutter Infill - Honey Comb/ Wool Insulation 5. Machine made interlocking skin sheets with interlock edges 6. Top Channel Flush with standards 7. Inverted bottom Channel with Option 8. Doors along with the Hardware's of approved or selected Brands RECOMMENDED FINISH Door Frame & Shutter 1.Powder Coating in desired RAL Shade Code

DOOR CONSRUCTION DETAIL Door Type: HMPS Steel Door Criteria: Stability & Integrity with Honeycomb Material Shutter Thickness: 46mm Steel Frame Profile Design: 100x57mm (Single Rebate) Steel Frame Profile Design: 143x57mm (Double Rebate opt.) DESCRIPTION 1. Frame - 1.2 /1.6mm Thick Galvanised steel sheet 2. Shutter - 0.8mm, 1.0mm, 1.2mm & 1.6mm Thick Galvanised steel sheet 3. Shutter Infill - Honey Comb 4. Vision Panel - As per Customer Requirement 5. Machine made interlocking skin sheets with interlock edges 6. Top Channel Flush with standards 7. Inverted bottom Channel with Option 8. Doors along with the Hardware's of approved or selected Brands RECOMMENDED FINISH Door Frame & Shutter 1. Powder Coating in desired RAL Shade Code

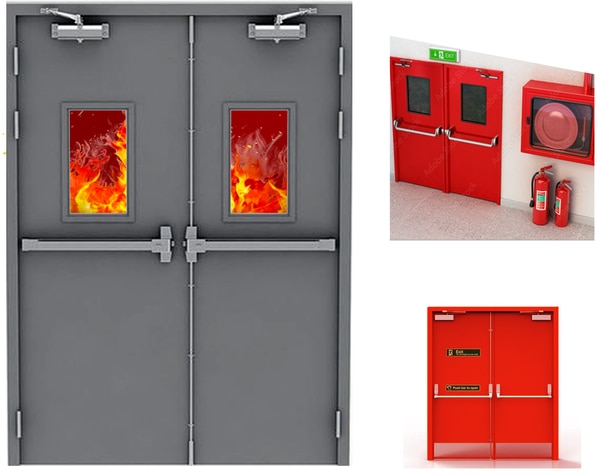

DOOR CONSRUCTION DETAIL Door Type: Steel Fire Retardant Door Criteria: Stability & Integrity with Infill Insulation Material Rating: 120mins Shutter Thickness: 46mm Steel Frame Profile Design: 100x57mm (Single Rebate) Testing Standards: IS 3614: 2021, IS/ISO3008 (PART-1):2019, ISO834-1, BS 476 PART 20 & 22:198 DESCRIPTION 1. Frame - 1.6mm Thick Galvanised steel sheet 2. Shutter - 1mm Thick Galvanised steel sheet 3. Shutter Infill Honey Comb/ Wool Insulation 4. Tested with Vision Panel For 120 minutes rating 5. Machine made interlocking skin sheets with interlock edges 6. Top Channel Flush with standards 7. Inverted bottom Channel with Option 8. Doors along with the Hardware's of approved or selected Brands RECOMMENDED FINISH Door Frame & Shutter 1.Powder Coating in desired RAL Shade Code

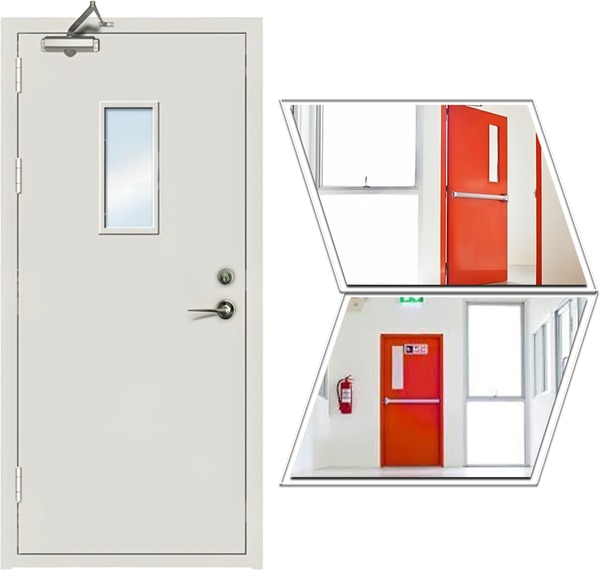

SINLE LEAF FIRE RATED DOOR 1. Frame - 1.6mm Thick Galvanised steel sheet 2. Shutter - 1.0mm Thick Galvanised steel sheet 3. Shutter Infill Honey comb/ Wool Insulation 4. Tested with Vision Panel For 120 minutes rating 5. Machine made interlocking skin sheets with interlock edges 6. Top Channel Flush with standards 7. Inverted bottom Channel with Option 8. Doors along with the Hardware's of approved or selected Brands RECOMMENDED FINISH Door Frame & Shutter 1. Powder Coating in desired RAL Shade Code
